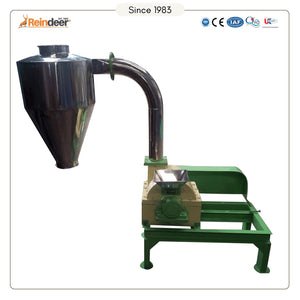

10 HP impact pulverizer
| MODEL | IP10+ SS304 |
| Production Capacity | 100 kg/Hr |
| Grinding Materials | Turmeric, Dry ginger, Black Papper, Wooden Saw Dust(50% Cap.), Dry Leaves, Lime Stone, Kattha, Kanku, Crayon For Fine Grinding |
| Electric Motor | 10 HP Crompton Motor IE2 ISI |
| Motor Brand | CG - Crompton |
| Ele. Motor RPM | 1440 RPM |
| Phase | Three Phase |
| Voltage | 440V, 50Hz |
| Power Consumption | 7.5 kW (7.5 Units) 7500 W |
| Mechanism RPM | ~3000 RPM |
| Chamber Size | 14" x 6.5" |
| Body Structure | SS full Body |

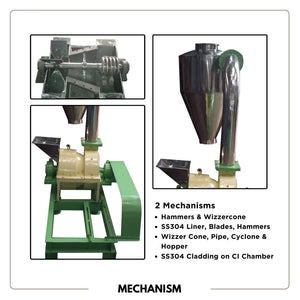

| Contact Parts | SS Liner, Hammers and Sieves |
| Weight | 250 Kg |
| Dimension | 5'4"*5'3"*8'5" |
| Accessories | 2 Clothes, Hopper, Motor Pulley |
| Foundation Required | Yes or Anti-Vibration Pad |
