atta flour machine
Quick Specification
| Materials |
wheat, maize, bajra, jowar, rice, pulses (as per model) |
| Output | ~45 kg/hr (depends on HP, material & mesh) |
| Power | 5 HP |
| Fineness (Mesh) | Upto 80 mesh |
| Body Options | MS (Mild Steel) or SS304 Food Grade |
Before You Buy
- Choosing the right atta flour machine depends on daily grinding capacity and the mesh required for flour fineness. Matching motor power with grain type ensures stable output and long service life.
Explore options from our atta flour mill machine range to compare capacities and configurations.
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.

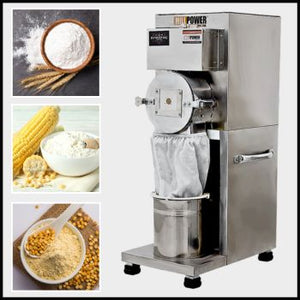

atta flour machine
| MODEL | SSH5 |
|---|---|
| Production Capacity | ~50 Kg/Hr |
| Grinding Materials | wheat, maize, bajra, jowar, rice, pulses (as per model) (depends on HP, material & mesh) |
| Electric Motor | 5 HP Mill Power Motor IE2 ISI |
| Motor Brand | Mill Power Pvt. Ltd. |
| Ele. Motor RPM | 2880 RPM |
| Phase | Three Phase |
| Voltage | 440V 50Hz |
| Power Consumption | 3.75 kWh (3.75 Units/hr) |
| Mechanism RPM | 2880 RPM |

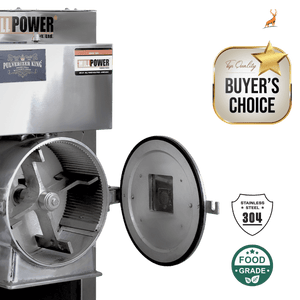

| Chamber Size | 12" x 6" |

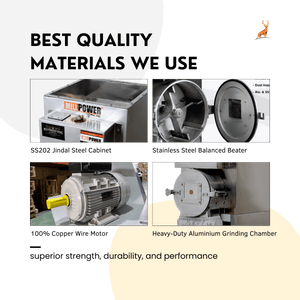

| Body Structure | MS + CI Body or CI, MS & SS304 Food Grade |
| Contact Parts | MS full Body or Full body SS304 Food Grade (on Demand) |
| Weight | 100 kg |
| Dimension (LxWxH) | 29" x 19" x 48" |
| Accessories | Cleaning Brush |
| Foundation Required | No |

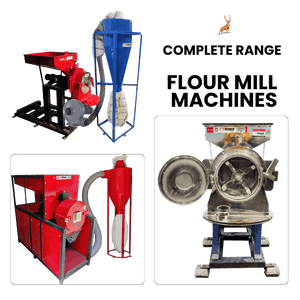

Model Range
| SSH3 ~30 kg/hr | 3 HP Motor (Single / Three Phase) |
|---|---|
| SSH5 ~50 kg/hr | 5 HP Motor (Single / Three Phase) |
| MSH7.5D ~70 kg/hr | 7.5 HP Motor (Singe/ Three Phase) |
| MSH10D ~100 kg/hr | 10 HP Motor (Three Phase) |
| MSH15D ~150 kg/hr | 15 HP Motor (Three Phase) |
| MSH20DB ~180 kg/hr | 20 HP Motor (Three Phase) |
Not sure which Machine you need?
Share your material name + required kg/hr on WhatsApp — we’ll suggest the right model.
