hammer pulverizer


MODEL BP20 SS304
Production Capacity ~200 Kg/Hr
Grinding Materials Chilli, Coriander, Cumin, Mix Masala, Dry Leaves, Clove, Cinnoman etc
Electric Motor 20 HP Crompton Motor IE2 ISI
Motor Brand CG - Crompton
Ele. Motor RPM 1440 RPM
Phase Three Phase
Voltage 440V, 50Hz
Power Consumption 15 kW (15 Units) 1500 W
Mechanism RPM ~3000 RPM
Chamber Size 12" x 24"
Body Structure SS304 full Body
Contact Parts SS Liner, Hammers and Sieves
Weight 340
Dimension 78"*56"*78"
Accessories 5 Sieves, 2 Clothes
Foundation Required Yes or Anti-Vibration Pad

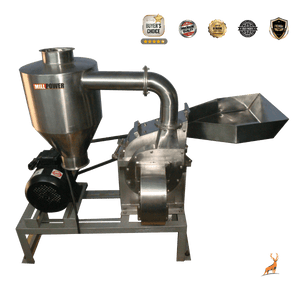

Say hello to the powerful 20 HP Hammer Mill Pulverizer, your super machine for grinding up all sorts of spices and herbs! This amazing grinder comes from the experts at Mill Power & Pulverizer King, who really know their stuff when it comes to making great machines for grinding.



This machine is a real powerhouse, with a big 20 HP motor that can grind up to 200 kg of stuff in just one hour. That means you can make a huge amount of fine powder from chilli, coriander, cumin, mix masala, clove, cinnamon, cardamon, and even herbs like dried roots and leaves, super fast!



The machine is made from SS304 stainless steel, which is really strong and safe for food. So, you can be sure it's going to last a long time and help you make lots of tasty spices.

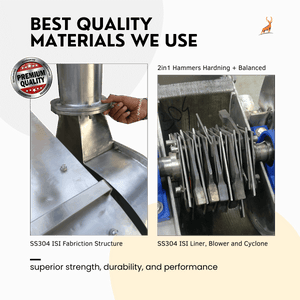

Inside the machine, there are special hammers and liners that work together to smash up the spices into tiny pieces. Then, these pieces get moved through a pipe to a cyclone collector, where all your freshly ground powder is collected neatly. It's like having your own little spice factory!



But wait, there's more good stuff! This machine also has some handy tools like an Air Lock Valve and a Vibro Sifter Machine. These help make sure your spices are not too wet before grinding, so you get the perfect powdery texture. And there's a Ribbon Blender, which lets you mix different powders and oils together. This means you can create your very own special spice mixes.



Getting this 20 HP Hammer Mill Pulverizer directly from the company means you're getting a top-notch machine. Mill Power & Pulverizer King are known for their awesome machines that make grinding easy and fun.



So, if you love cooking with fresh spices or if you're thinking about starting a small business to sell your own spice mixes, this machine is perfect for you. It's easy to use, super efficient, and ready to help you make the most delicious spices ever. Get ready to spice up your meals and impress everyone with your amazing creations with the 20 HP Hammer Mill Pulverizer!


Regular price Rs. 26,640.00 Sale price Rs. 22,200.00
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.
Call Now
Pan-India dispatch • Warranty + spares support • GST invoice
chilli grinding machine - main machine view - reindeer machinery

hammer pulverizer

Rs. 22,200.00
MODEL BP3
Production Capacity 30 Kg/Hr
Grinding Materials Chilli, coriander, cumin, dry masala, dry leaves, clove, cinnamon, cardamon, herbs etc.
Electric Motor 3 HP Crompton Motor IE2 ISI
Motor Brand CG - Crompton
Ele. Motor RPM 1440 RPM
Phase Single and Three Phase
Voltage 220V or 440V, 50Hz
Power Consumption 2.2 kWh
Mechanism RPM ~3000 RPM
Chamber Size 10" x 5"
Body Structure MS full Body or Full body SS304 Food Grade
Contact Parts MS full Body or Full body SS304 Food Grade (on Demand)
Weight 100 kg
Dimension (LxWxH) 4' x 3' x 4' (feet)
Accessories 3 Sieves, 2 Clothes (Anti-Vibration pad, Anchor Fastener Extra)
Foundation Required Yes or Anti-Vibration Pad

Best for

  • Masala manufacturers
  • Kirana / local spice sellers
  • Food processing units
  • Commercial kitchens (if relevant)
  • High-volume daily grinding

Applications & Materials

Chilli grinding machine
Turmeric grinding machine
Besan / flour mill
Ribbon blender / roaster

Model Range

Features

  • Uniform grinding output
  • Heavy-duty motor & strong chamber
  • Easy mesh change / cleaning access
  • Low vibration design
  • Safe operation + overload protection (if available)
  • Spare parts availability

Benefits

  • Saves labor and grinding time
  • Better consistency → better product quality
  • Continuous running for business operations
  • Lower maintenance cost over time
  • Considerable ROI for daily production

FAQ

Q1: How much does a Hammer Pulverizer cost in India?
A1: Prices vary based on motor HP, output capacity, material of construction (MS/SS), and optional accessories like cyclone, blower, and dust control. Share your required material to grind and target capacity, and we’ll recommend a suitable model and send a quotation.

Q2: What materials are suitable for Hammer Pulverizer?
A2: Hammer-type pulverizers are typically used for dry grains, spices, herbs, cattle feed ingredients, and other brittle materials. Material hardness, moisture, and required fineness decide the best screen/mesh and motor size.

Q3: What is the production capacity of the Hammer Pulverizer?
A3: Capacity depends on the raw material, desired mesh size, and motor power. Coarser grinding generally gives higher output; finer mesh reduces output. Tell us your target kg/hr and fineness, and we’ll confirm the right model configuration.

Q4: What electrical power requirements does the Hammer Pulverizer have?
A4: Power requirements depend on motor HP and site power availability (single-phase/three-phase). Share your voltage and phase, and we’ll recommend the correct motor, starter, and protection.

Q5: How does the Hammer Pulverizer work?
A5: A rotating hammer assembly impacts the material against a screen/sieve. You control fineness mainly by selecting the right sieve/mesh and maintaining steady feeding.

Q6: Do you provide installation, warranty, and spare parts for the Hammer Pulverizer?
A6: Yes—support options typically include installation guidance, operating instructions, and spare parts supply. Warranty terms depend on the model and configuration. Share your location and usage details so we can confirm service coverage and spares availability.
