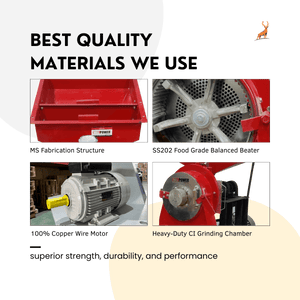

10 hp atta chakki - chamber hopper and motor close-up view - reindeer machinery
atta chakki flour mill - grains - Reindeer Machinery

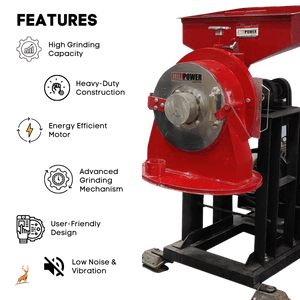

10 hp atta chakki - features - reindeer machinery

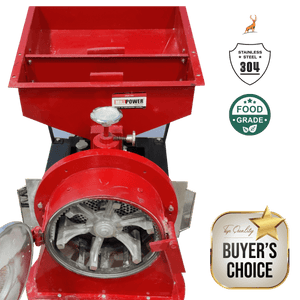

10 hp atta chakki - hopper and feeder - reindeer machinery
20 hp atta chakki - Complete Range - Reindeer Machinery
10 hp atta chakki - side view - reindeer machinery
10 hp atta chakki - chamber hopper and motor close-up view - reindeer machinery
atta chakki flour mill - grains - Reindeer Machinery
10 hp atta chakki - features - reindeer machinery
10 hp atta chakki - hopper and feeder - reindeer machinery
20 hp atta chakki - Complete Range - Reindeer Machinery

10 hp atta chakki

Quick Specification

Materials wheat, maize, bajra, jowar, rice, pulses (as per model)
Output  ~100 kg/hr (depends on HP, material & mesh)
Power  10 HP
Fineness (Mesh) Upto 70 mesh
Body Options CI (Cast Iron) + MS (Mild Steel) or SS304 Food Grade

Before You Buy

  • Confirm your required kg/hr output + mesh fineness on your material.
  • WhatsApp your material name + target kg/hr to get the right model + HP suggestion.



Regular price Rs. 151,900.00 Sale price Rs. 121,500.00
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support

Guaranteed Safe Checkout

Paytm
Visa
Mastercard
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.
Call Now
Pan-India dispatch • Warranty + spares support • GST invoice
10 hp atta chakki - side view - reindeer machinery

10 hp atta chakki

Rs. 121,500.00
MODEL MSH10D
Production Capacity ~100 Kg/Hr
Grinding Materials wheat, maize, bajra, jowar, rice, pulses (as per model) (depends on HP, material & mesh)
Electric Motor 10 HP Crompton Motor IE2 ISI
Motor Brand CG - Crompton
Ele. Motor RPM 1440 RPM
Phase Three Phase
Voltage 440V, 50Hz
Power Consumption 7.5 kWh (7.5 Units/hr)
Mechanism RPM ~3000 RPM
Chamber Size 14" Diameter
Body Structure MS + CI Body or CI, MS & SS304 Food Grade
Contact Parts MS full Body or Full body SS304 Food Grade (on Demand)
Weight 200 kg
Dimension (LxWxH) 5' x 4' x 6' (feet)
Accessories 2 Clothes (Anti-Vibration pad Extra)
Foundation Required Yes or Anti-Vibration Pad

Best For

• Mini flour mill business
• Retail flour shop setup
• Commercial kitchens
• Grain milling units

Application Materials

wheat, maize, bajra, jowar, rice, pulses (as per model)

Model Range

SSH3 ~30 kg/hr 3 HP Motor (Single / Three Phase)
SSH5 ~50 kg/hr 5 HP Motor (Single / Three Phase)
MSH7.5D ~70 kg/hr 7.5 HP Motor (Singe/ Three Phase)
MSH10D ~100 kg/hr 10 HP Motor (Three Phase)
MSH15D ~150 kg/hr 15 HP Motor (Three Phase)
MSH20DB ~180 kg/hr 20 HP Motor (Three Phase)

Features

• Stable grinding mechanism (stone/stoneless as per model)
• Strong motor with long running support
• Dust control and easy cleaning
• Single/three phase options
• Pan-India dispatch support

Benefits

• Fresh flour on demand
• Stable grinding for long hours
• Low maintenance design options
• Easy operation and cleaning
• Good for home or business use

10 Hp Pulverizer Atta Chakki Price – Exceptional Milling for High-Volume Operations

 The 10 Hp Pulverizer Atta Chakki from Mill Power Pvt Ltd is designed for high-volume grain milling operations. Powered by a robust 10 HP Three Phase Electric Motor, it boasts a considerable production capacity of approximately 100 kg/hr, ideal for large commercial milling needs.



This machine is built with an MS (Mild Steel) Stand and Stainless Steel Balanced Hammers, providing durability and efficient milling performance. Its double chamber mechanism, complemented by a blower mechanism, is key to producing high-quality, consistent flour – essential for businesses that rely on large-scale flour production.



Mill Power Pvt Ltd, with its extensive experience in the industry, has designed the 10 Hp Pulverizer Atta Chakki to meet the demanding needs of commercial milling operations, offering a blend of power, efficiency, and reliability.

FAQ

Q1. What is the difference between atta chakki and flour mill for “15 hp atta chakki motor price”?
A1. Atta chakki is common for fresh flour. Flour mills are designed for higher output, longer running, and stable fineness control.

Q2. Is 15 HP enough for your use?
A2. It depends on daily target and fineness. For continuous grinding, keep margin and avoid running on maximum load all day.

Q3. Can I control fineness (fine/medium/coarse)?
A3. Yes, most machines have adjustment. Very fine grinding may reduce output and increase power use.

Q4. Single phase or three phase: which one should I buy?
A4. Three-phase is better for high HP and stable performance. Single phase is ok for small use if power is stable.

Q5. What maintenance is required?
A5. Clean flour dust daily, check belt tension, and lubricate moving parts as recommended.
