Aata Chakki Ki Machine 3 HP | Reindeer Machinery
Quick Specification
| Materials |
wheat, maize, bajra, jowar, rice, pulses (as per model) |
| Output | ~30 kg/hr (depends on HP, material & mesh) |
| Power | 3 HP |
| Fineness (Mesh) | Upto 80 mesh |
| Body Options | MS (Mild Steel) or SS304 Food Grade |
Before You Buy
This small-capacity unit is designed for daily flour grinding with low power consumption and simple operation. Watch the video to understand machine working, output clarity, and installation basics. Explore more options in our Atta Chakki Machines collection.
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.

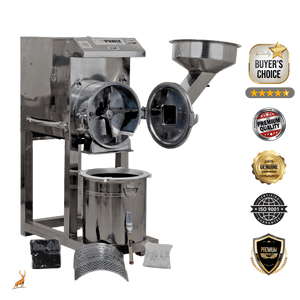

Aata chakki ki machine
| MODEL | SSC3A |
|---|---|
| Production Capacity | ~30 Kg/Hr |
| Grinding Materials | wheat, maize, bajra, jowar, rice, pulses (as per model) (depends on HP, material & mesh) |
| Electric Motor | 3 HP Mill Power Motor IE2 ISI |
| Motor Brand | Mill Power Pvt. Ltd. |
| Ele. Motor RPM | 2880 RPM |
| Phase | Single Phase |
| Voltage | 220V 50Hz |
| Power Consumption | 2.25 kWh (2.25 Units/hr) |
| Mechanism RPM | 2880 RPM |
| Chamber Size | 1st Stage - 8" x 4" |
| Body Structure | MS + CI Body or CI, MS & SS304 Food Grade |
| Contact Parts | MS full Body or Full body SS304 Food Grade (on Demand) |
| Weight | 72 kg |
| Dimension (LxWxH) | 32" x 14" x 43" |
| Accessories | Cleaning Brush |
| Foundation Required | No |
Model Range
| SSH3 ~30 kg/hr | 3 HP Motor (Single / Three Phase) |
|---|---|
| SSH5 ~50 kg/hr | 5 HP Motor (Single / Three Phase) |
| MSH7.5D ~70 kg/hr | 7.5 HP Motor (Singe/ Three Phase) |
| MSH10D ~100 kg/hr | 10 HP Motor (Three Phase) |

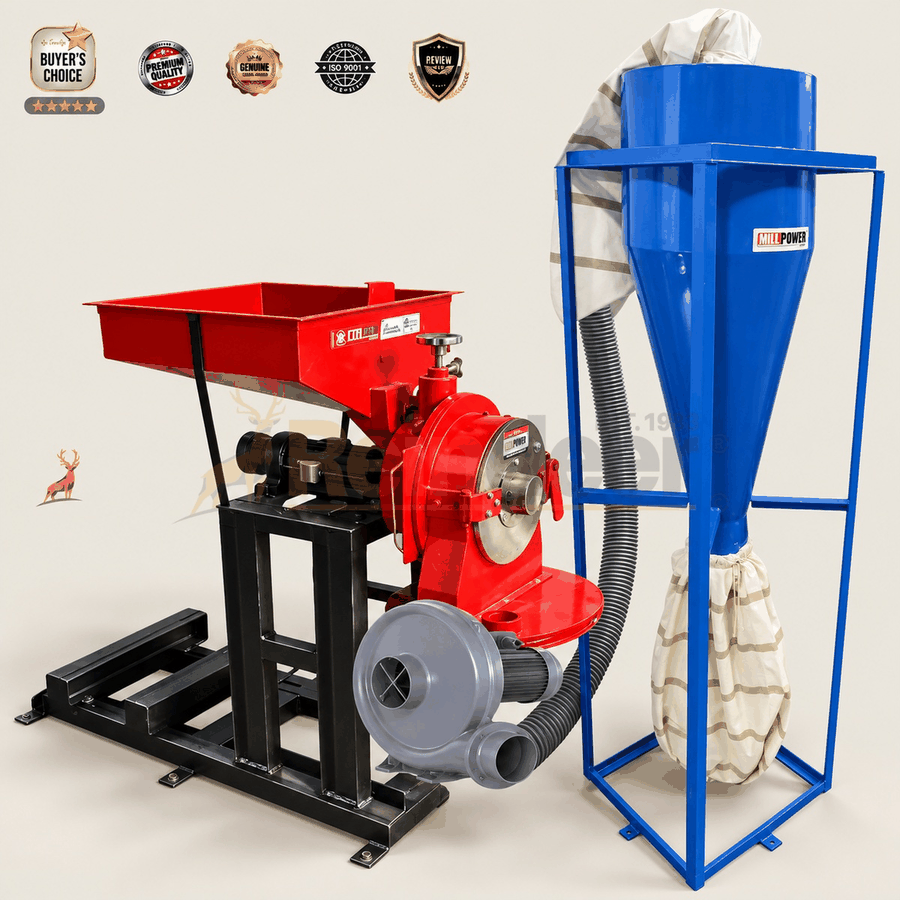

| MSH15D ~150 kg/hr | 15 HP Motor (Three Phase) |

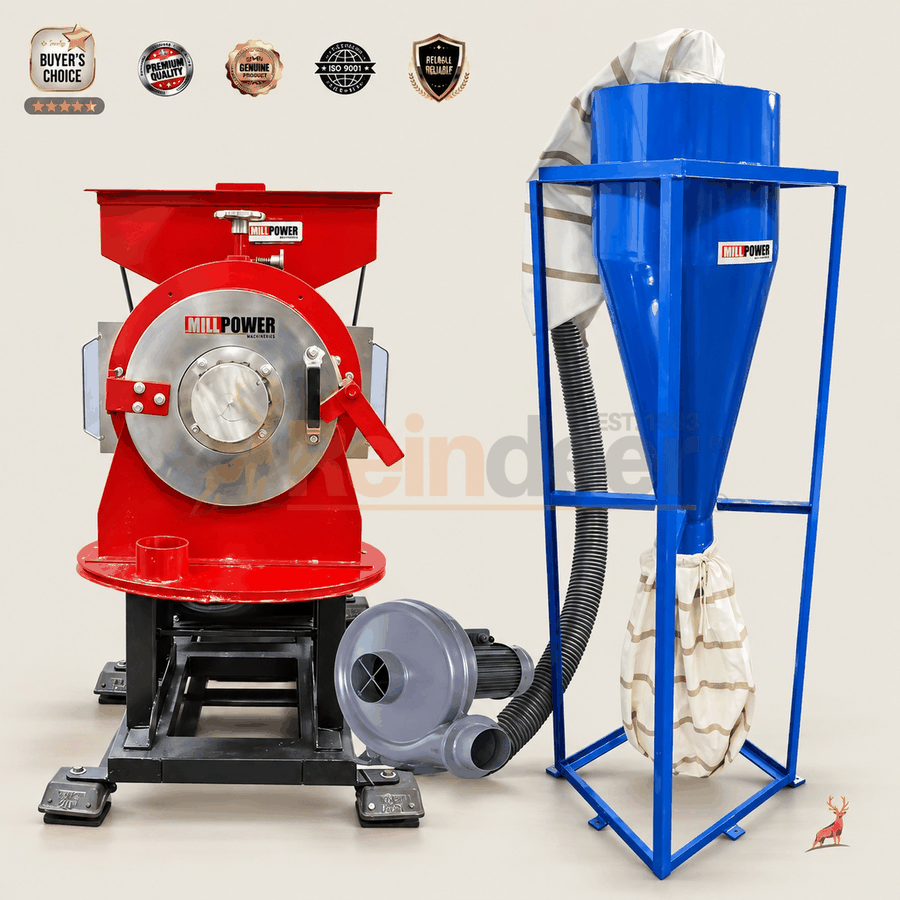

| MSH20DB ~180 kg/hr | 20 HP Motor (Three Phase) |
Not sure which Machine you need?
Share your material name + required kg/hr on WhatsApp — we’ll suggest the right model.
