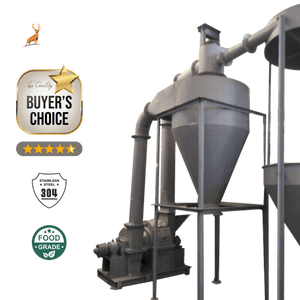

Impact Pulverizer for Haldi Grinding | 10 HP Machine
\n
Regular price
Rs. 106,000.00
Sale price
Rs. 88,600.00
Unit price
per
Quick Specification
| Materials |
Dry ginger, turmeric chips, Black Papper, Wooden Saw Dust, Dry Leaves, Lime Stone, Kattha, Kanku, Crayon, herbs For Fine Grinding |
| Output | ~100 kg/hr (depends on HP, material & mesh) |
| Power | 10 HP |
| Fineness (Mesh) | Upto 200 mesh |
| Body Options | CI (Cast Iron) + MS (Mild Steel) or SS304 Food Grade |
Before You Buy
- Watch the machine processing turmeric to evaluate grinding efficiency, output fineness, and build quality.
This video demonstrates industrial performance of an impact pulverizer from our Haldi Turmeric Grinding Machine range.
Ideal for commercial spice processors and haldi manufacturers.
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.
Impact Pulverizer
Get Quotation / Support in 30–60 Minutes
Working hours : Mon - Sat (10 am to 7 pm)
Not sure which Machine you need?
Share your material name + required kg/hr on WhatsApp — we’ll suggest the right model.
| MODEL | IP10 or IP10 SS304 |
|---|---|
| Production Capacity | ~100 Kg/Hr |
| Grinding Materials | Dry ginger, turmeric chips, Black Pepper, Wooden Saw Dust, Dry Leaves, Lime Stone, Kattha, Kanku, Crayon, herbs For Fine Grinding (depends on HP, material & mesh) |
| Electric Motor | 10 HP Crompton Motor IE2 ISI |
| Motor Brand | CG - Crompton |
| Ele. Motor RPM | 1440 RPM |
| Phase | Three Phase |
| Voltage | 440V, 50Hz |
| Power Consumption | 7.5 kWh (7.5 Units/hr) |
| Mechanism RPM | ~3000 RPM |
| Chamber Size | 14" Diameter |
| Body Structure | MS full Body or Full body SS304 Food Grade |
| Contact Parts | MS full Body or Full body SS304 Food Grade (on Demand) |
| Weight | 340 kg |
| Dimension (LxWxH) | 5' x 5' x 8' (feet) |
| Accessories | 2 Clothes (Anti-Vibration pad Extra) |
| Foundation Required | Yes or Anti-Vibration Pad |
Model Range
| IP7.5 ~60 kg/hr | 7.5 HP Motor (Three Phase Motor) |
|---|---|
| IP10 ~100 kg/hr | 10 HP Motor (Three Phase Motor) |
| IP20 ~200 kg/hr | 20 HP Motor (Three Phase Motor) |
| IP30 ~300 kg/hr | 30 HP Motor (Three Phase Motor) |
| IP60 ~600 kg/hr | 60 HP Motor (Three Phase Motor) |
| IP100 ~1000 kg/hr | 100 HP Motor (Three Phase Motor) |
