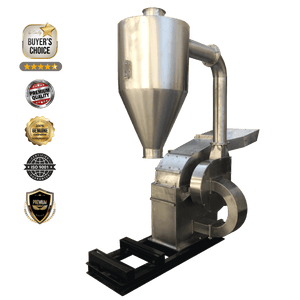

20 HP Masala Grinder Machine
Quick Specification
| Materials | Chilli, coriander, cumin, dry masala, herbs, dry leaves, clove, cinnamon, cardamom, etc. |
| Output | ~200 kg/hr (depends on HP, material & mesh) |
| Power | 20 HP |
| Fineness (Mesh) | Upto 50 mesh |
| Body Options | MS (Mild Steel) or SS304 Food Grade |
Before You Buy
- Confirm your required kg/hr output + mesh fineness on your material.
- WhatsApp your material name + target kg/hr to get the right model + HP suggestion.
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support
Guaranteed Safe Checkout
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.
20 HP Masala Grinder Machine
Product Specification
| MODEL | BP or BP SS304 |
|---|---|
| Production Capacity | ~200 Kg/Hr |
| Grinding Materials | Chilli, coriander, cumin, dry masala, dry leaves, clove, cinnamon, cardamon, herbs etc. |
| Electric Motor | 20 HP Crompton Motor IE2 ISI |
| Motor Brand | CG - Crompton |
| Ele. Motor RPM | 1440 RPM |
| Phase | Three Phase |
| Voltage | 440V, 50Hz |
| Power Consumption | 14 kWh (5.6 Units/hr) |
| Mechanism RPM | ~3000 RPM |
| Chamber Size | 24" x 12" |
| Body Structure | MS full Body or Full body SS304 Food Grade |
| Contact Parts | MS full Body or Full body SS304 Food Grade (on Demand) |
| Weight | 340 kg |
| Dimension (LxWxH) | 78" x 56" x 78" |
| Accessories | 3 Sieves, 2 Clothes (Anti-Vibration pad, Anchor Fastener Extra) |
| Foundation Required | Yes or Anti-Vibration Pad |
Best for
Applications & Materials
Model Rannge

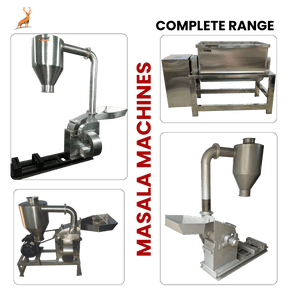

Model Range

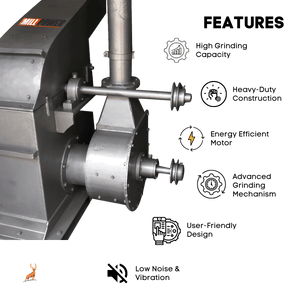

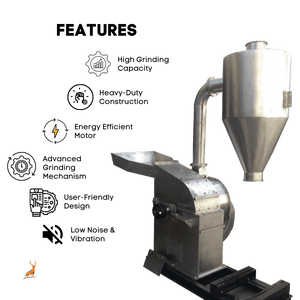

Features
Benefits
Description
FAQ
Not sure which Machine you need?
Share your material name + required kg/hr on WhatsApp — we’ll suggest the right model.
