Haldi Pisne Ki Machine

Quick Specification

Materials

Dry ginger, turmeric chips, Black Papper, Wooden Saw Dust, Dry Leaves, Lime Stone, Kattha, Kanku, Crayon, herbs For Fine Grinding

Output  ~100 kg/hr (depends on HP, material & mesh)
Power  10 HP
Fineness (Mesh) Upto 200 mesh
Body Options CI (Cast Iron) + MS (Mild Steel) or SS304 Food Grade

Before You Buy

  • Confirm your required kg/hr output + mesh fineness on your material.
  • WhatsApp your material name + target kg/hr to get the right model + HP suggestion.

Regular price Rs. 121,300.00 Sale price Rs. 97,100.00
187K+ Subscribers
500+ Google Reviews
Export to 30+ Countries
Warranty + Spares Support

Guaranteed Safe Checkout

Paytm
Visa
Mastercard
Not sure which Machine you need?
Share material name + required kg/hr on WhatsApp — we’ll suggest the right model + HP recommendation.
Pan-India dispatch • Warranty + spares support • GST invoice

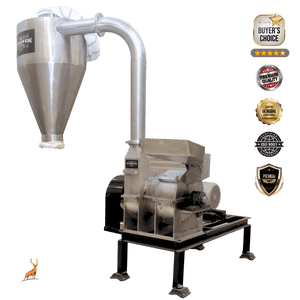

turmeric grinding machine - ss304 food grade- reindeer machinery

Haldi Pisne Ki Machine

Rs. 97,100.00
MODEL IP10 or IP10 SS304
Production Capacity ~100 Kg/Hr
Grinding Materials Dry ginger, turmeric chips, Black Pepper, Wooden Saw Dust, Dry Leaves, Lime Stone, Kattha, Kanku, Crayon, herbs For Fine Grinding (depends on HP, material & mesh)
Electric Motor 10 HP Crompton Motor IE2 ISI
Motor Brand CG - Crompton
Ele. Motor RPM 1440 RPM
Phase Three Phase
Voltage 440V, 50Hz
Power Consumption 5.6 kWh (5.6 Units/hr)
Mechanism RPM ~3000 RPM
Chamber Size 14" Diameter
Body Structure MS full Body or Full body SS304 Food Grade
Contact Parts MS full Body or Full body SS304 Food Grade (on Demand)
Weight 340 kg
Dimension (LxWxH) 5' x 5' x 8' (feet)
Accessories 2 Clothes (Anti-Vibration pad Extra)
Foundation Required Yes or Anti-Vibration Pad

Best for

• Turmeric powder makers
• Spice processors
• Ayurvedic/herbal units
• Food-grade powder plants
• High output grinding needs

Application Materials

Dry ginger, turmeric chips, Black Papper, Wooden Saw Dust(50% Cap.), Dry Leaves, Lime Stone, Kattha, Kanku, Crayon, herbs For Fine Grinding~60 kg/hr (depends on HP, material & mesh)

Model Range

IP7.5 ~60 kg/hr 7.5 HP Motor (Three Phase Motor)
IP10 ~100 kg/hr 10 HP Motor (Three Phase Motor)
IP20 ~200 kg/hr 20 HP Motor (Three Phase Motor)
IP30 ~300 kg/hr 30 HP Motor (Three Phase Motor)
IP60 ~600 kg/hr 60 HP Motor (Three Phase Motor)
IP100 ~1000 kg/hr 100 HP Motor (Three Phase Motor)

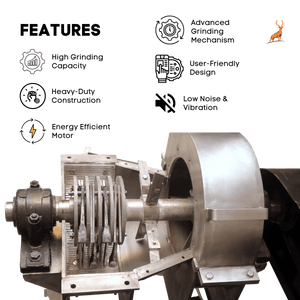

Features

• Suitable for dry turmeric grinding
• Strong build for hard material
• Mesh options for required fineness
• Easy feeding and collection
• Food-grade SS options available

Benefits

• Saves time in daily production
• Consistent output with better control
• Low running issues with proper setup
• Easy to clean and maintain
• Better ROI for small to large units

Description

Mill Power Pvt Ltd, a leader in spice grinding technology since 1983, introduces the Turmeric Grinding Machine, equipped with a powerful 7.5 HP Three Phase Electric Motor. This machine, with a production capacity of approximately 60 kg/hr, is designed for both commercial and industrial use, perfect for grinding turmeric to a fine consistency up to 200 mesh.

Built with a choice of Full Body MS (Mild Steel) or SS304 food-grade Stainless Steel, the Turmeric Grinding Machine is both durable and compliant with food safety standards. Its advanced grinding mechanism is capable of processing not only turmeric but also a range of other materials including besan, sugar, coal, herbs, and wooden materials.

Mill Power Pvt Ltd has been exporting its high-quality machines to over 30 countries, making a mark in the global market. This machine is a reflection of the company's more than 40 years of manufacturing experience, emphasizing efficiency, reliability, and the finest grinding quality.

The Turmeric Grinding Machine is more than just a piece of equipment; it's a testament to Mill Power's commitment to innovation and customer satisfaction. Its ergonomic design ensures ease of operation, while its maintenance-friendly features make it a practical choice for businesses looking for a high-performance grinding solution. Investing in this machine means opting for a product that guarantees quality, efficiency, and a high return on investment.

FAQ

Q1. Does “haldi pisne ki machine” need pre-drying before grinding?
A1. Yes, dry turmeric grinds better and reduces clogging. Proper drying also improves color and reduces overheating.

Q2. How do I select sieve/mesh for my target fineness?
A2. Choose mesh based on required powder size. Hard spices may need a slightly bigger mesh first, then re-grind for fine powder.

Q3. Which build is better: MS or SS304 food grade?
A3. SS304 is better for hygiene and corrosion resistance. MS is budget-friendly but needs proper coating and careful cleaning.

Q4. How do I keep turmeric color bright?
A4. Use controlled feed, correct mesh, and avoid long continuous overload. Cooling breaks can help if you see heat rise.

Q5. What should I share to get the right model recommendation?
A5. Send your material name, required kg/hr, and fineness level. We can suggest HP, chamber size, and sieve options.
